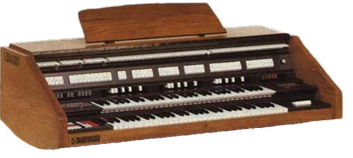

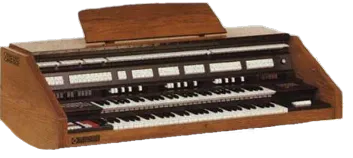

Wersi Zenith W3S
|
| Wersi Analoge Orgel Zenith |
| Model |
Zenith W3S |
| Datum |
ca. 1978 |
| Type |
Entertainment / Jazz organ |
Afm. (B/H/D)
gewicht |
134 cm / 112 cm
/ 67 cm
Niet bekend |
| Manualen |
2 X 61 toetsen |
| Pedaal |
30 tonig, flat |
| Versterkers Speakers |
2 x 70 watt
Interne |
| Efekten |
Piano
Group: Piano, Harpsichord, Banjo, etc.
Special Effects:
VCF Wah-Wah, Sine wave percussion, etc.
Roterende Speaker
2 WersiVoice
units, nagalmveer |
| Aanvullende units |
- |
| Generator |
IC TOS, 8 octave
blokgolf, master oscillator met dividers
Vibrato: 2
speeds, 3 intensiteiten
"Slalom" (pitch glide), Transposer. |
|
Registratie boven Manual |
13
ranks: 16', 8', 5-1/3', 4', 2-2/3', 2', 1-3/5', 11/3', 1-1/7', 1',
8/9', 4/5', 2/3'
11 drawbars (9 standard, 1-1/7' + 8/9' and 2/3' + 4/5')
22
Registers: Principal 16', Cello 16', Horn 16', Accordion 16',
Trombone16', Saxophone 16', English Horn 8', Principal 8', Viola 8',
Clarinet 8',
Oboe 8', Schalmei 8', Trumpet 8', Flute 4', Violin 4', Nasat
2-2/3', Prinicpal 2', Third 1-3/5', Fifth 1-1/3', Piccolo 1', Cymbal 2
ranks,
Mixture 4 ranks
Snel/langzame attack; 3 sustain levels |
|
Registratie onder Manual |
13
ranks: 16', 8', 5-1/3', 4', 2-2/3', 2', 1-3/5', 1-1/3', 1-1/7', 1',
8/9', 4/5', 2/3'
11 drawbars (9 standard, 1-1/7' + 8/9' and 2/3' + 4/5')
17 Registers: Cello 16', Bourdon 16', Principal 16', Viola
8', Principal 8', Gedackt 8', Horn 8', Principal 4', Violin 4', Nasat
2-2/3', Prinicpal 2',
Flute 2', Third 1-3/5', Fifth 1-1/3', Piccolo 1',
Mixture 2 ranks, Mixture 4 ranks
Snel/langzame attack; 3 sustain levels |
|
Registratie Pedal |
6 ranks:
16', 8', 4', 2', 1' + 1/2'
5 drawbars.
4 stops: Tuba
16', Trumpet 8', String bass 8', Bass Guitar 8'
2 sustain levels |
| Sound |
- |
| Overige mogelijkheden |
Sound
Computer: met 32 geheugenplaatsen (presets) voor het gehele orgel,
in te stellen door de gebruiker (uitbreidbaar tot 64 geheugenplaatsen
(presets).
American Black Walnut kast, met vergrendeldeksel. |
|
