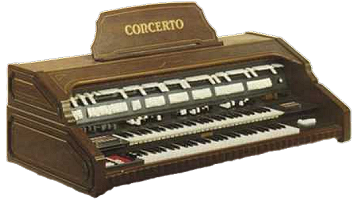

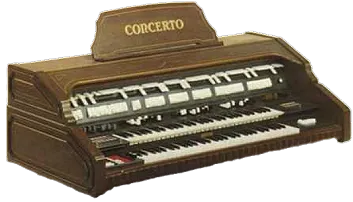

Wersi Concerto W3A
|
| Wersi Analoge Orgel Wersi
Concerto |
| Model |
Wersi Concerto |
| Datum |
ca. 1980 |
| Type |
Entertainment / Jazz organ |
Afm. (B/H/D)
gewicht |
135 cm / 116 cm
/ 71 cm (132 cm" D/ Pedalen)
Kast: 138 kg, met bank en pedalen: 176 kg |
| Manualen |
2 X 61 toetsen |
| Pedaal |
30 tonig, flat |
| Versterkers Speakers |
2 x 70 watt
Interne |
| Efekten |
Piano
Group: Piano, Harpsichord, Banjo, etc.
Special Effects: VCF
Wah-Wah, Noise generator, Sinus percussion, etc. 2 WersiVoice units
Nagalmveer. |
| Aanvullende units |
- |
| Generator |
IC TOS, 8 octave
blokgolf, master oscillator met dividers.
Vibrato: 2
speeds, 3 intensiteiten
"Slalom" (pitch glide), Transposer. |
|
Registratie boven Manual |
13
ranks: 16', 8', 5-1/3', 4', 2-2/3', 2', 1-3/5', 1-1/3', 1-1/7', 1',
8/9', 4/5', 2/3'
11 drawbars (9 standard, 1-1/7' + 8/9', 2/3' +
4/5')
22
Registers: Principal 16', Cello 16', Horn 16', Accordion 16',
Trombone 16', Saxophone 16', English Horn 8', Principal 8', Viola 8',
Clarinet 8', Oboe 8', Schalmei 8', Trumpet 8', Flute 4', Violin 4', Nasat
2-2/3', Prinicpal 2', Third 1-3/5', Fifth 1-1/3', Piccolo 1', Cymbal 2
ranks, Mixture 4 ranks
Snel/langzame attack; 3 sustain levels |
|
Registratie onder Manual |
13
ranks: 16', 8', 5-1/3', 4', 2-2/3', 2', 1-3/5', 1-1/3', 1-1/7', 1',
8/9', 4/5', 2/3'
11 drawbars (9 standard, 1-1/7' + 8/9', 2/3' + 4/5')
17 Registers: Cello 16', Bourdon 16', Principal 16', Viola
8', Principal 8',
Gedackt 8', Horn 8', Principal 4', Violin 4', Nasat
2-2/3', Prinicpal 2', Flute 2',
Snel/langzame attack; 3 sustain levels |
|
Registratie Pedal |
6 ranks: 16',
8', 4', 2', 1' + 1/2'
5 drawbars
4 Registers: Tuba 16', Trumpet 8',
String bass 8', Bass Guitar 8'
2 sustain levels |
| Sound |
-. |
| Overige mogelijkheden
en Sounds |
Sound
Computer: met 32 geheugenplaatsen (presets) voor het gehele orgel,
in te stellen door de gebruiker (uitbreidbaar tot 64 geheugenplaatsen
(presets).
American Black Walnut kast, in "tijdloze traditionele stijl". |
|
